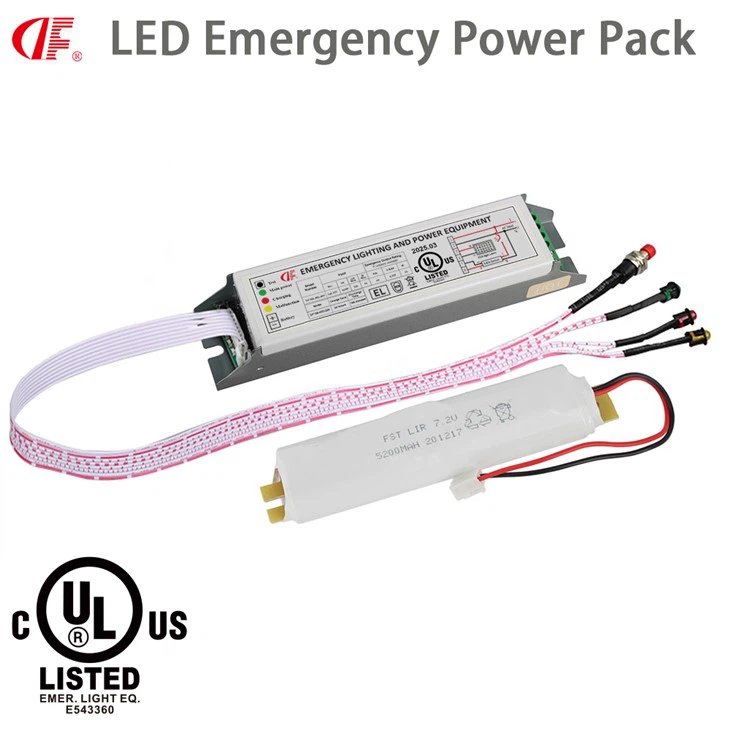

UL Certificate 168-30D-200 10W - Emergency LED Driver - Battery Backup 90 Minutes - Ideal For Wall Packs & Linear Light And Vapor Lights

UL Certificate 168-30D-200 10W - Emergency LED Driver - Battery Backup 90 minutes - Ideal for Wall Packs & Linear Light and Vapor Lights





Model	DF168-30D-200
Support LED power rangement	Max 56V, 8A
Emergency Output Power	Max.10W
Input Voltage	AC120~277V
Charging current	Max. 80mA/h ±20
Signal Indicator	Yes
Working Test button	Yes
Charge protection voltage	8.4V
Discharge end voltage	6.0V
Battery	7.4V Lithium-ion or 6.8V LiFePo4 battery
Emergency Time	>90minutes and Customized duration
Charge Time	≥24 Hours constant charging
Self test	Monthly, yearly self-test function
Working Environment	0-50℃,65+20%RH
Emergency Start Voltage	Support 160V~240V AC input(optional)
Display settings	green light – Charging, red light – condition, yellow light – Malfunction







AC Input L-- connect port 1 & Switch+ Led driver L side input. The wall switch only controls the main power, no function on emergency lighting.

AC Input N-- connect port 2 & LED driver N side input.

Port 3&4 connect to light source

Port 5 connect LED driver output negative side

Port 6 connect LED driver output positive side

Indicators:

Green indicator: On---Battery is Charging, Off---Battery fully charged

Red indicator: On---Main power on, Off---Main power off;

Yellow indicator: EM. Power Pack faulty, or No light connected.





● This emergency power supply can be compatible with most led lamps, and the maximum power can reach 200W and has max.10w emergency power output

● The inverter electric design life can reach 5 years, and the maximum battery life can reach 2000 cycles

● The product is designed to be compact and can be installed in the power box or lamp of ordinary lamps.

● This emergency kit complies with EN61347-2-7:2012 and EN55015 standards for installation in the EU and other EU code-driven jurisdictions.

● Emergency lighting LED driver with automatic selftest functionality

● For self-contained emergency lighting

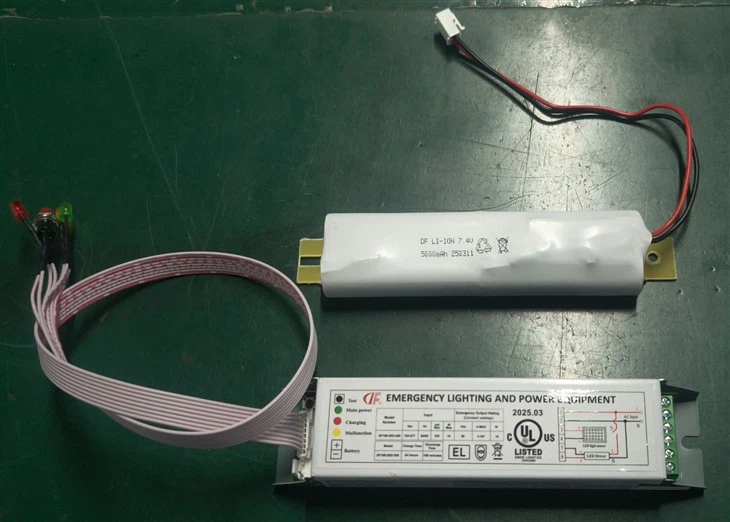

1. DF168-30D-200 integrates one high performance lithium battery in its case, designed to output max.10w power as emergency power backup.

2. This model can automatically test light chip's series and adjust the output voltage to best match between the inverter and the load, providing max.10w illumination customized.



DENGFENG Constant current output Smart LED Emergency Power Kit DF168-30D-200

● Suitable to a wide range of external driver led light, including highbay light, panel light, liner light, etc.

● Suitable to max. 200w LED light and output max. 10w emergency power.

● Automatical selftest function, including monthly test and annual test.

● Auto voltage input selection (90~280 VAC)

● Maximum Load Power: 65W (0°C to 50°C) CE, Rohs certificates

● Lamps operated: LED Lamps,

● Dual Input voltage 120V or 277VAC, 60Hz

● Output Current: Max.300Vdc

● Replaceable and recyclable Lithium-ion battery or LiFePo4 battery with Max. 5-year life expectancy

● Indoor and Damp location rated

● A testing switch and charging indicator are provided

● This emergency kit complies with UL924 and CSA standards for installation in the U.S. and other UL code-driven jurisdictions.
