DF268C LED Lamp Automatic Emergency Device

Reduced power emergency output
Automatic current adjustment
Intelligent automatic charging system
Indicator shows a variety working modes
Built-in lithium battery
Compatible with LED fixtures with external driver

Send Inquiry

Description

DF268C LED Lamp Automatic Emergency Device

led emergency driver kits

Product Description

The DF268C module is compatible with LED fixtures with external driver, the output of the driver cannot exceed 40W or 4A.
The DF268C module is compatible with dimming driver.

AC power operation

When the AC power is normal, the LED driver outputs to the LED load, and the DF268C module is in charging mode and does not output.The green LED light on to indicate that AC power is normal. The red LED light on to indicate that the battery is charging.

Emergency operation

The DF268C module automatically switches to working emergency mode when AC power is interrupted. All of the indicator lights go out. The DF268C module is battery powered and outputs to the LED load, keeping the LEDs at 10-30% brightness for 60 -180 minutes..

Product Parameters

Input Voltage	AC90-180V,50/60Hz
Charging Current	Max.200mA
Output Power	3-5W
Output Voltage	DC12-120V
Lamp Power	Max. 40W
Emergency Time	60-180mins
Battery	3.7V Li-ion/3.2V LiFePO4/3.6V Ni-Cd Battery
Charging Time	≥24 Hours
Ambient Temperature	0~+50℃
Inverter Dimensions	1504030mm
IP Rating	IP20
Warranty	3 Years

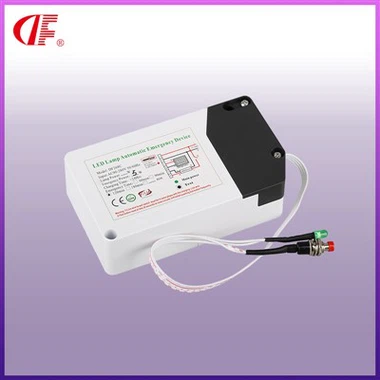

Real Product Photo

DF268C Emergency Driver

DF268C Emergency Lighting

DF268C Emergency Module

Wiring Diagram

L--Connect to the AC input live wire L and LED external driver's live wire L1. This driver's live wire L1 can set

a wall switch S.The wall switch only controls the main power, no function on emergency lighting.

N--Connect the AC input neutral wire N and LED external driver's neutral wire N1.

1--Connect the positive output of the driver.

2--Connect the negative output of the driver.

3--Connect the negative terminal of the light source.

4--Connect the positive terminal of the light source

Product Dimension

DF268C

Battery Type

37V Battery

Indicator Light

Green Indicator

Green Indicator Light：On---Main AC power is normal. Off--Main AC power is interrupted.

Red Indicator Light：On--The battery is charging. Off--The battery is fully charged.

Yellow Indicator Light：On--The module is in an abnormal state, such as no battery connection, incorrect wiring, module failure and so on. Off--Normal.
