DF518T LED Lamp Automatic Emergency Device

Reduced power emergency output
Automatic current adjustment
Intelligent automatic charging system
Indicator shows a variety working modes
External lithium battery pack
Self-test function
Compatible with LED fixtures with external driver

Send Inquiry

Description

DF518T LED Lamp Automatic Emergency Device

led emergency driver kits

Product Description

The DF518T module is compatible with LED fixtures with external driver, the output of the driver cannot exceed 200W or 8A.

The DF518T module is compatible with dimming driver.

AC power operation

When AC power is present, the LED driver outputs to the LED load, and this DF518T module is in charging mode and does not

output. The green LED light on to indicate that AC power is normal. The red LED light on to indicate that the battery is charging.

Emergency operation

The DF518T module automatically switches to working emergency mode when AC power is interrupted. All of the indicator lights go out. The DF518T module is battery powered and outputs to the LED light source, keeping the LEDs at 10-30% brightness for 60 -180 minutes.

Product Parameters

Input Voltage	AC90-180V,50/60Hz
Charging Current	Max.200mA
Output Power	5-20W
Output Voltage	DC120-240V
Lamp Power	Max. 200W
Emergency Time	60-180mins
Battery	7.4V Li-ion/6.4V LiFePO4/7.2V Ni-Cd Battery
Charging Time	≥24 Hours
Ambient Temperature	0~+50℃
Inverter Dimensions	1504030mm
IP Rating	IP20
Warranty	3 Years

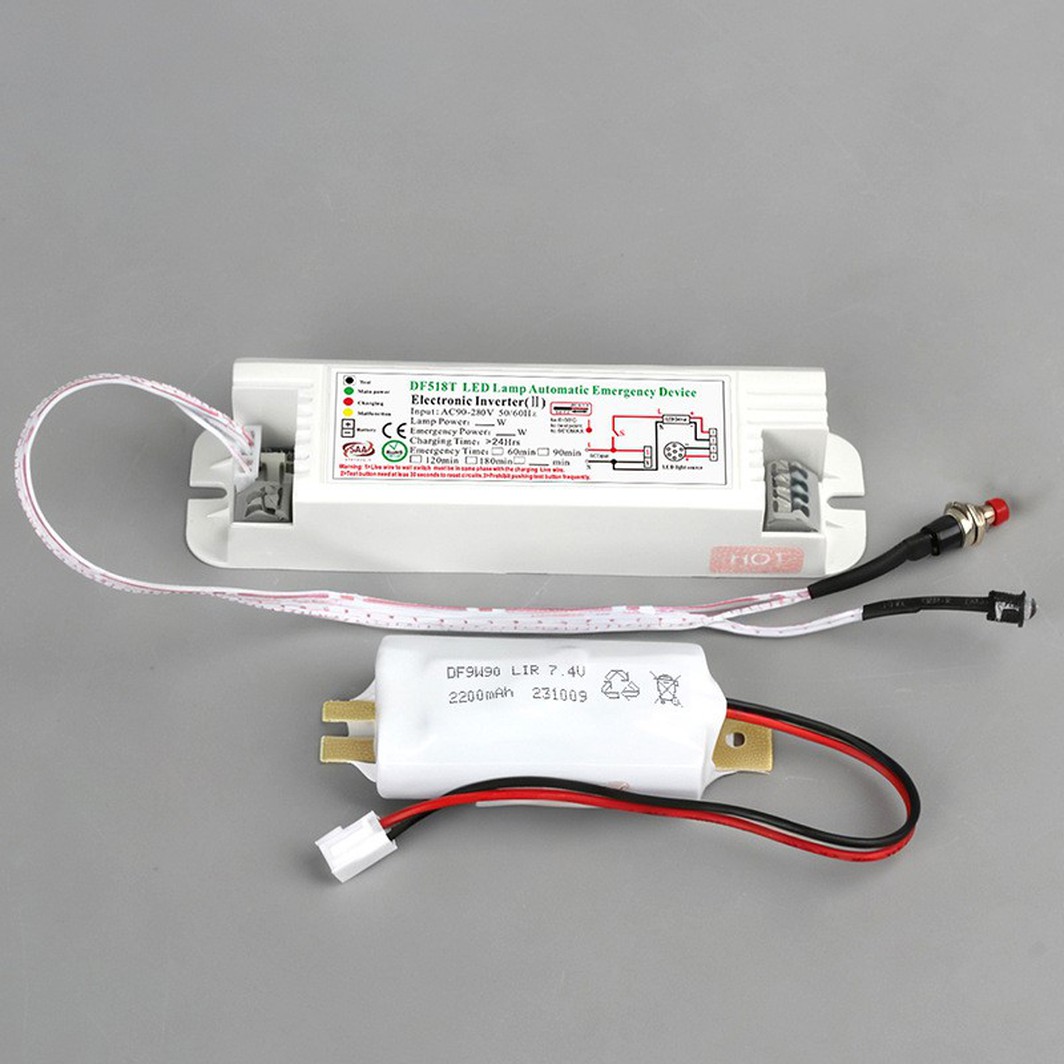

Real Product Photo

DF518T LED1

DF518T Emergency Device

Wiring Diagram

1--Connect to the live wire L and LED external driver's live wire L. This driver's live wire L can set a wall switch S.The wall switch only controls the main power, no function on emergency lighting.

2--Connect the neutral wire N and LED external driver's neutral wire N.

3--Connect the positive terminal of the light source.

4--Connect the negative terminal of the light source.

5--Connect the negative output of the driver.

6--Connect the positive output of the driver.

Product Dimension

Battery Type

74V

Indicator Light

product-1060-1500

Green Indicator Light：On---Main AC power is normal. Off--Main AC power is interrupted.

Red Indicator Light：On--The battery is charging. Off--The battery is fully charged.

Yellow Indicator Light：On--The module is in an abnormal state, such as no battery connection, incorrect wiring, module failure and so on. Off--Normal.
