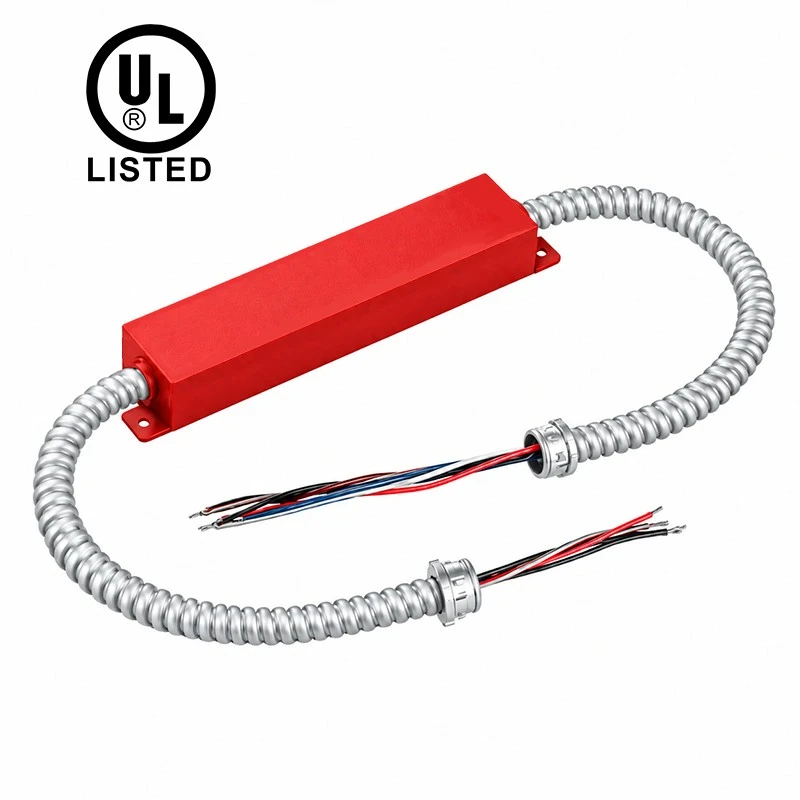

UL Listed Emergency Lighting And Power Equipment
*UL Listed for US and CANADA
*Listed to UL924 and tested to CSA C22.2 NO.141 Field or factory installation
*High output voltage
*Constant output power
*Self-testing
*Battery:Over Temperature Protection
Over Charge Protection
Over Discharge Protection
*For wiring to the led driver's AC input
Description
Input Voltage:100~277Vac,50/60Hz
Input Current:200mA max.
Recharge Power:12W max.
Output Voltage:170Vdc
Emergency Power:5W/10W/15W/20W/30W
Recharge Time:24Hrs
Discharge Time: 1.5H or 3H
Warranty:3 Years
Battery:LiFePO4
READ AND FOLLOW ALL SAFETY INSTRUCTION
1.This emergency driver provides more than one power supply output source. To reduce the risk of electrical shock, disconnect both normal and emergency source by turning off the A.C. branch circuit.
2.Servicing of this equipment should be performed by qualified personnel only.
3.Do not attempt to service the battery. A sealed,no-maitenence batery is used that is not field replaceable. Replace the entire unit when necessary.
4.The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void warranty, and result in
non-compliance with UL specifications.
5.Connnect the emergency driver battery pack to the unit before applying A.C.Power.
6.The emergency driver requires an un-switched AC power source of 100-277VAC,50/60Hz.Verify the correspondent electrical rating at the
LEDfixturebeforeservicing.Bothof theelectricalratingwil supply power under an output voltage of 170VDC in emergency mode for at least 90minutes.
7.Battery pack should be charged for 24 hours every 6 months during storage.
8.Press test switch again to turn off emergency before shipping.
9. Battery in this unit may not be fully charged.After electricity is connected to the unit for at least 24 hours,then normal operation of this unit should take effect.
10.For use in 0°C minimum, 50°C maximum ambient temperatures.Suitable for use in damp locations and plenum spaces.
11Theemergencydrivershouldbemountedinlocationsandatheightswhereitwilnotreadilybesubjectedtotamperingbyunauthorizedprsonnel
12.Do not use this equipment foranything other than its intended use.Equipmentonly use for LED Lighting emergency backup.
13.Do not mount near gas or electric heaters.Do not let power supply cords touch hot surfaces.
14. Do not make or leave any other open holes in the wiring enclosure or electrical component enclosure during installation.
15.The emergency driver have battery inside,forbidden for insulation voltage(I/P-O/P) test.
16.This fixture is for use with grounded,UL Listed, damp location rated,indoor fixture. Not for use in heated air outlets or hazardous locations.
17.Maximum installation height: 28.5 feet.
18. Do not use outdoor.
2.Servicing of this equipment should be performed by qualified personnel only.
3.Do not attempt to service the battery. A sealed,no-maitenence batery is used that is not field replaceable. Replace the entire unit when necessary.
4.The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void warranty, and result in
non-compliance with UL specifications.
5.Connnect the emergency driver battery pack to the unit before applying A.C.Power.
6.The emergency driver requires an un-switched AC power source of 100-277VAC,50/60Hz.Verify the correspondent electrical rating at the
LEDfixturebeforeservicing.Bothof theelectricalratingwil supply power under an output voltage of 170VDC in emergency mode for at least 90minutes.
7.Battery pack should be charged for 24 hours every 6 months during storage.
8.Press test switch again to turn off emergency before shipping.
9. Battery in this unit may not be fully charged.After electricity is connected to the unit for at least 24 hours,then normal operation of this unit should take effect.
10.For use in 0°C minimum, 50°C maximum ambient temperatures.Suitable for use in damp locations and plenum spaces.
11Theemergencydrivershouldbemountedinlocationsandatheightswhereitwilnotreadilybesubjectedtotamperingbyunauthorizedprsonnel
12.Do not use this equipment foranything other than its intended use.Equipmentonly use for LED Lighting emergency backup.
13.Do not mount near gas or electric heaters.Do not let power supply cords touch hot surfaces.
14. Do not make or leave any other open holes in the wiring enclosure or electrical component enclosure during installation.
15.The emergency driver have battery inside,forbidden for insulation voltage(I/P-O/P) test.
16.This fixture is for use with grounded,UL Listed, damp location rated,indoor fixture. Not for use in heated air outlets or hazardous locations.
17.Maximum installation height: 28.5 feet.
18. Do not use outdoor.
