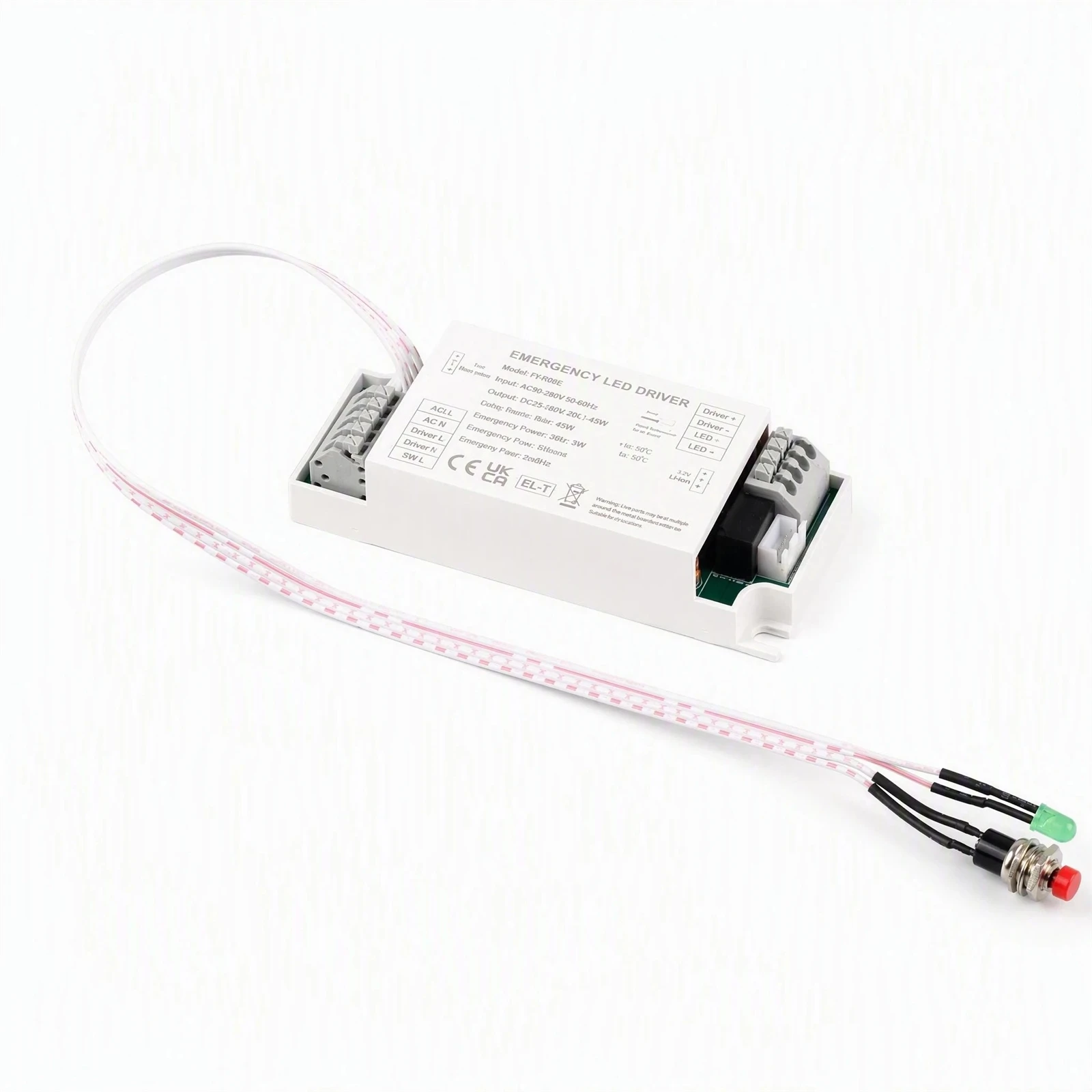

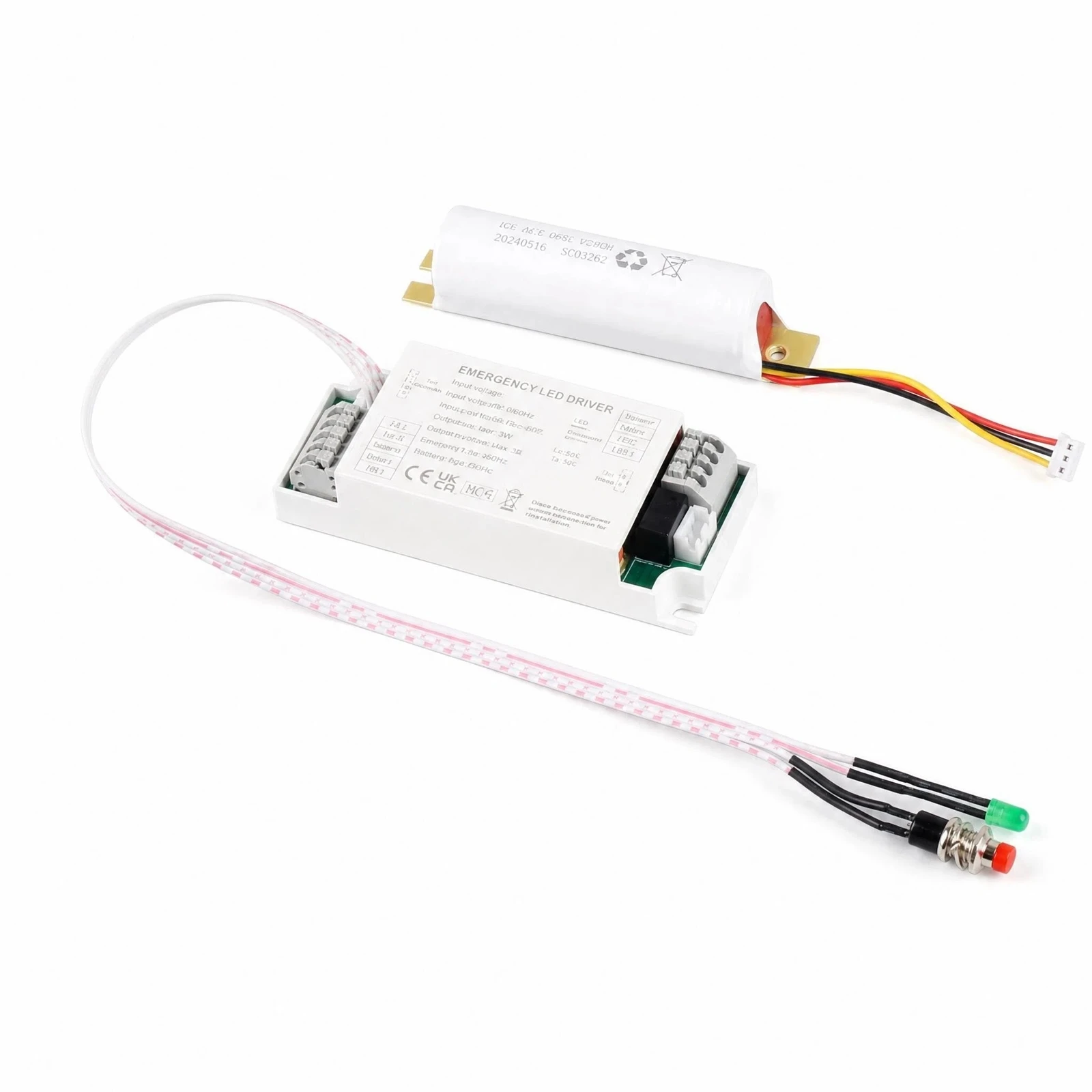

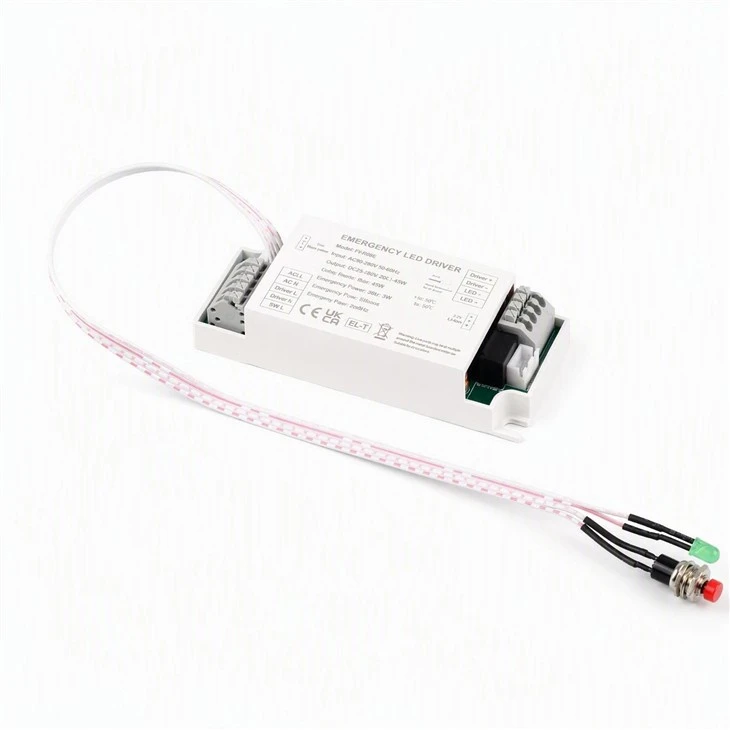

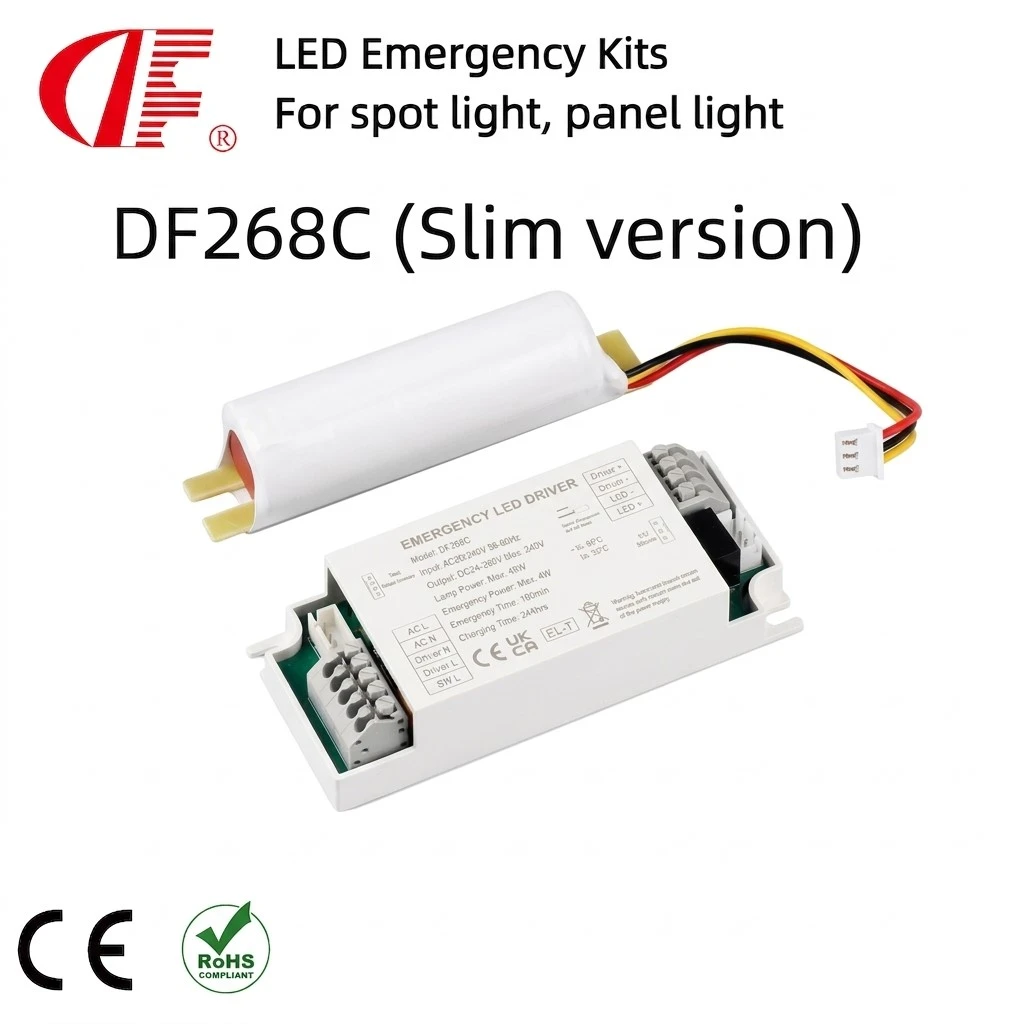

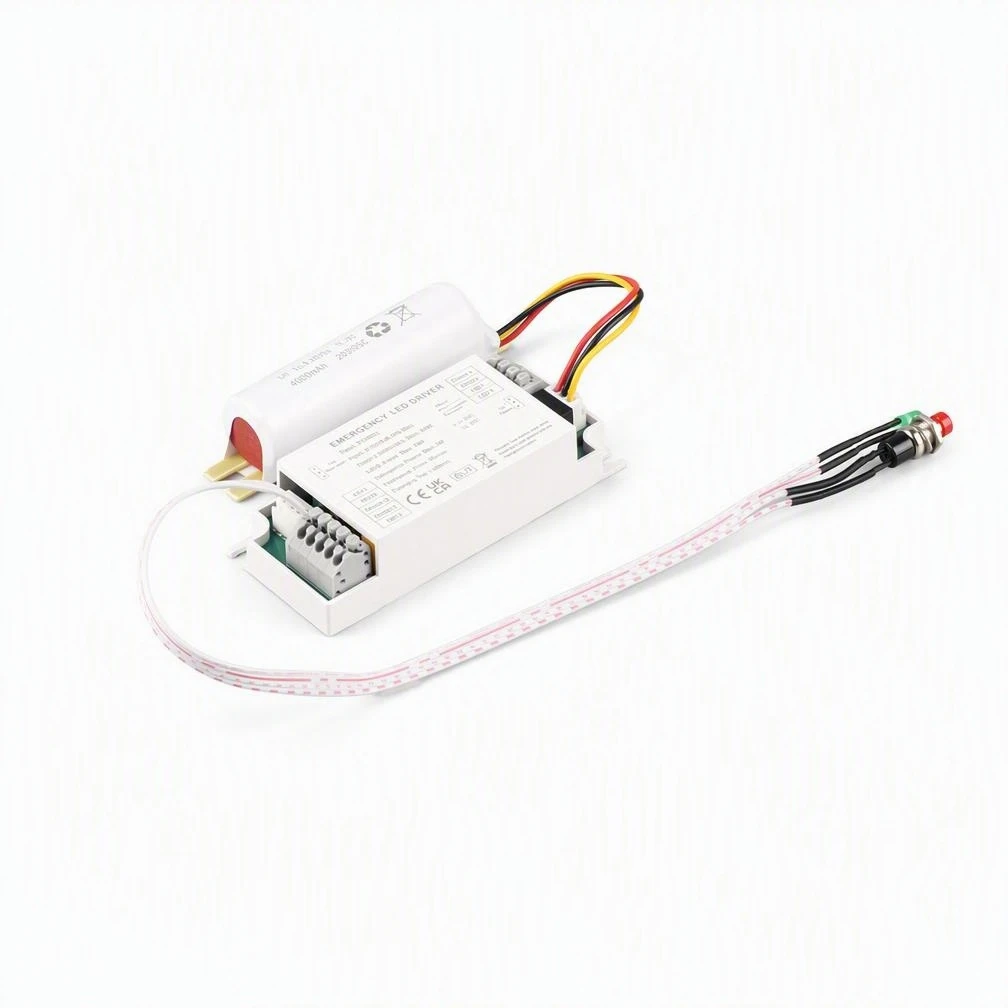

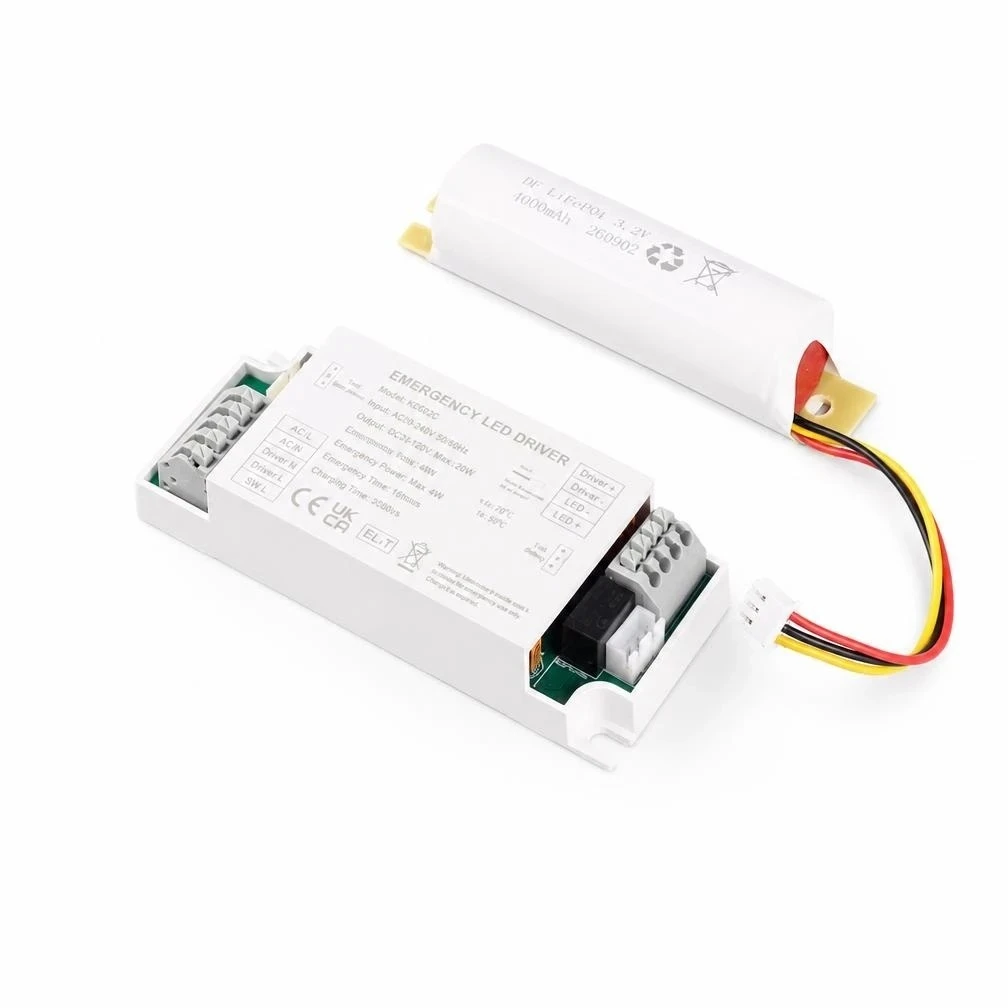

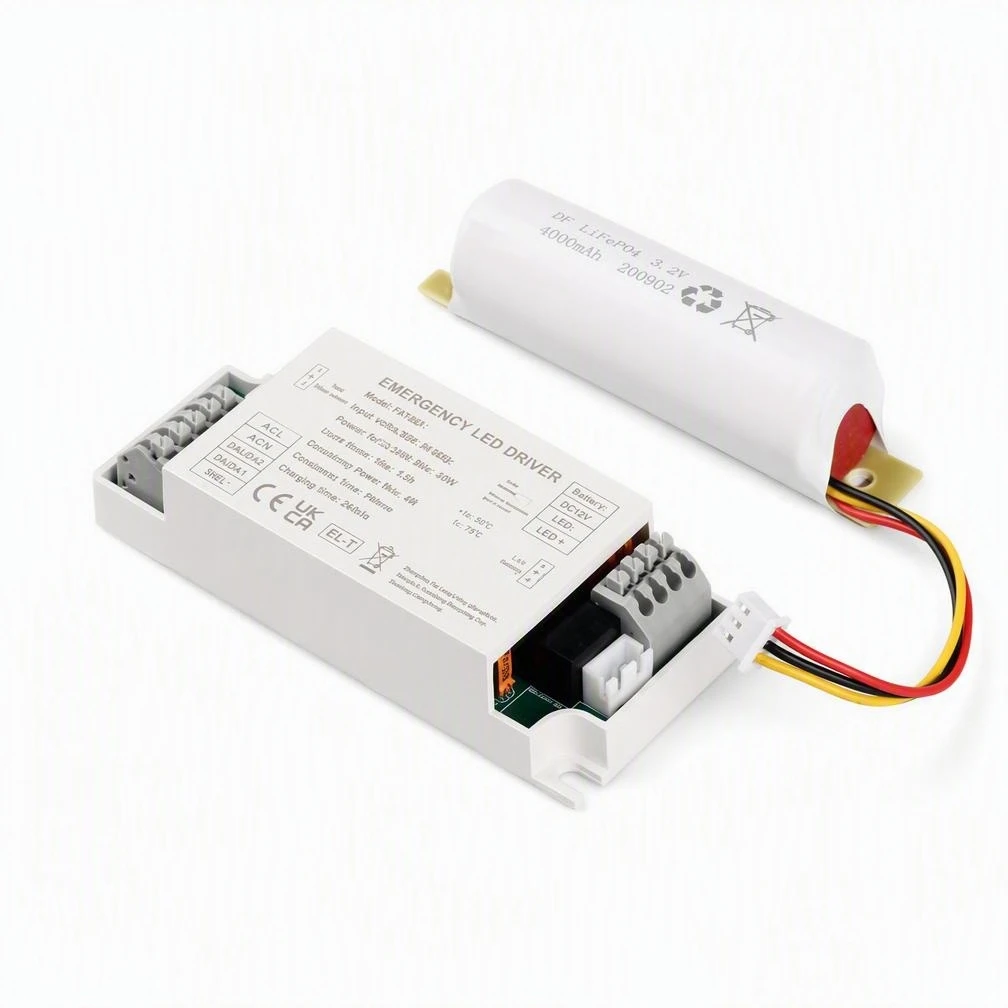

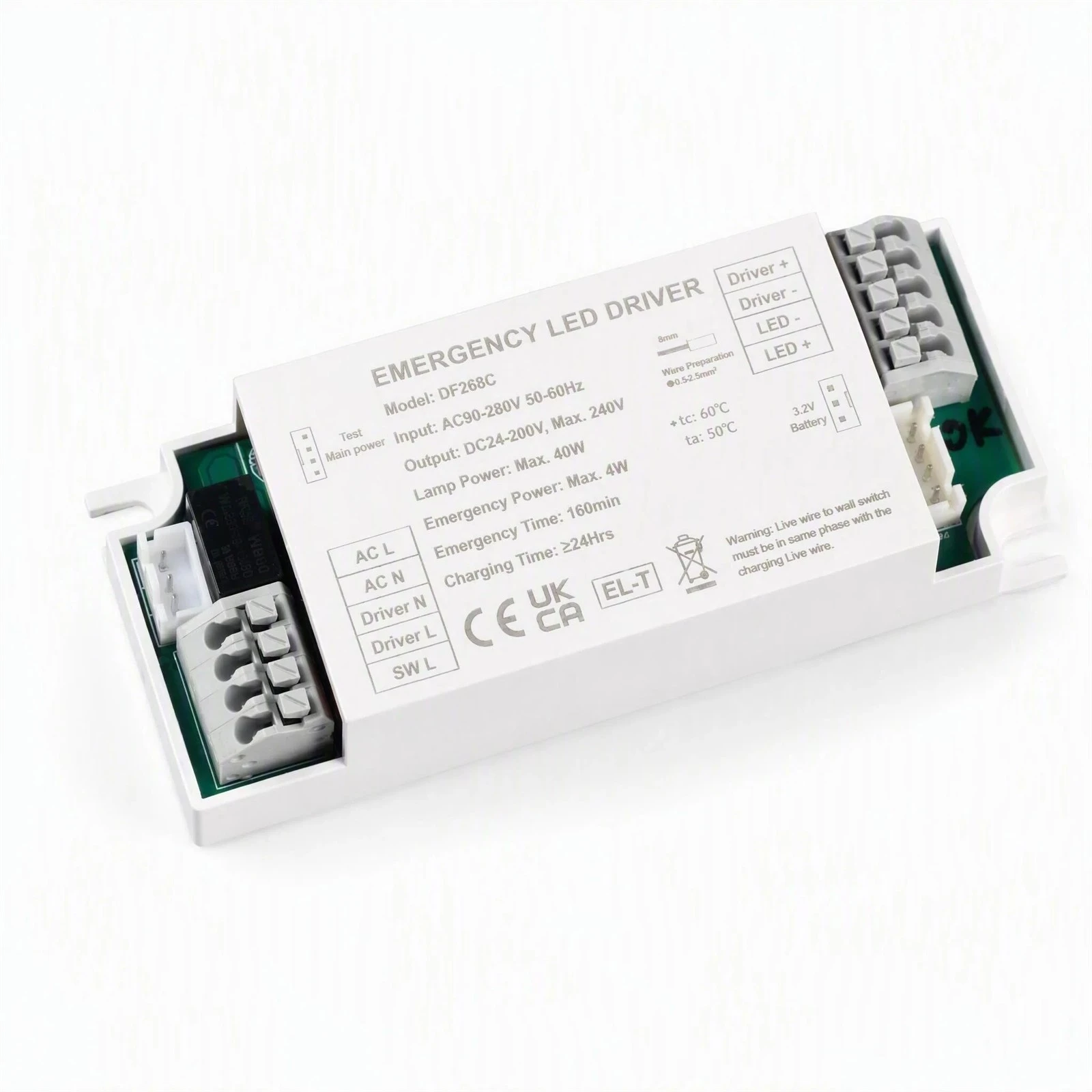

DF268C Slim LED Emergency Driver 5W 90-Min Backup Kit For Spot & Panel Lights
Designed for compact lighting fixtures, the DF268C (Slim version) emergency LED driver provides automatic 5W backup power for 90 minutes during main power interruptions. Powered by an external 3.7V 2.2Ah lithium-ion battery, this ultra-slim module seamlessly integrates with external dimmable or non-dimmable drivers to maintain continuous emergency lighting across spot lights, panel lights, and downlights.
Description
Key Features:
Automatic Emergency Switching: Immediately supplies 5W output to the connected LED load for 90 minutes when AC power fails.
Ultra-Slim & Compact Design: Low-profile plastic enclosure allows easy installation in tight spaces or narrow ceiling cutouts.
Wide Compatibility: Works smoothly with LED luminaires using external drivers up to 100W/4A, including 0-10V and DALI dimmable setups.
Smart Charging System: Includes intelligent automatic charging with multi-mode LED indicators showing AC power status and battery charging.

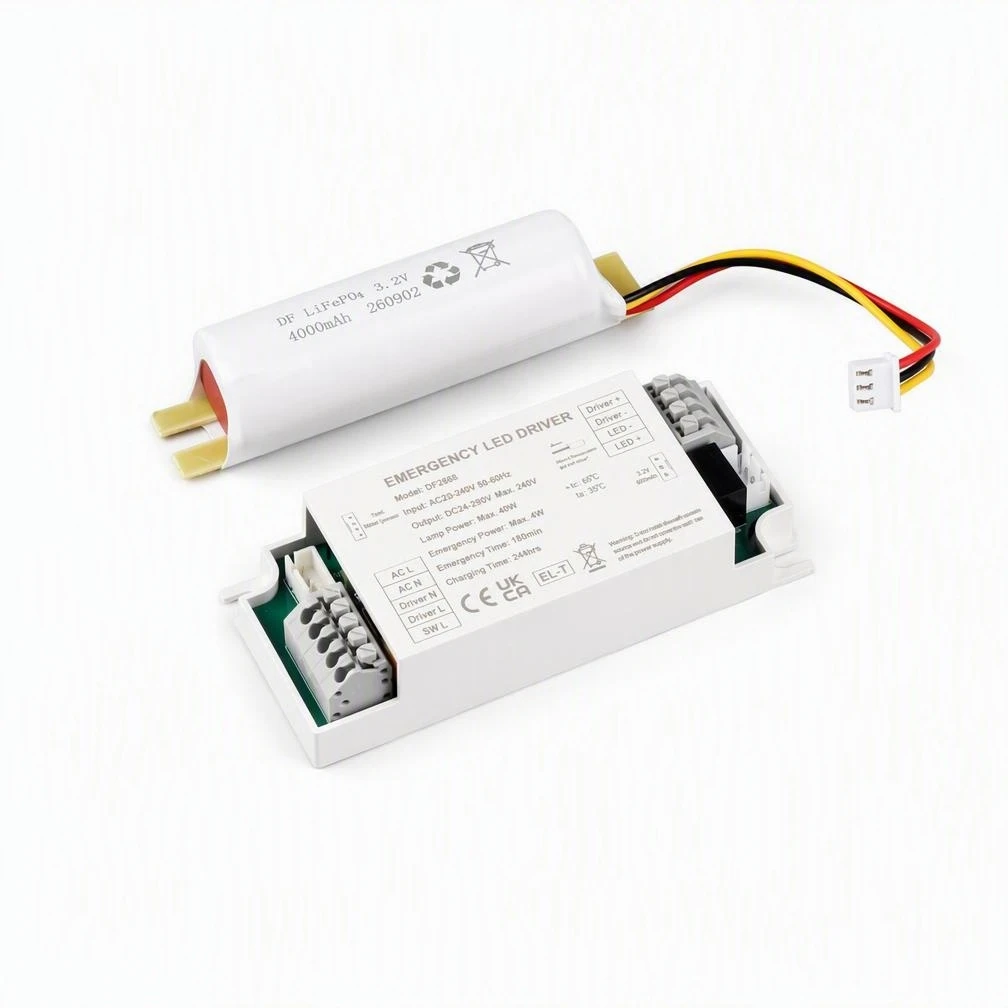

External Lithium Battery: Equipped with a 3.7V 2.2Ah Li-ion battery pack for dependable energy storage and long operational lifespan.
Applications:
Ideal for LED spot lights, LED panel lights, downlights, and commercial indoor luminaires requiring discreet emergency battery backup
5. Product Specifications
| Parameter | Technical Detail |
| Model |
DF268C (Slim Version) |
| Input Voltage |
AC 90–280V, 50/60Hz |
| Emergency Power |
5W |
| Emergency Duration |
≥ 90 Minutes |
| Battery Type |
External Li-ion 3.7V 2.2Ah |
| Output Voltage Range |
DC 120–200V (Customizable) |
| Charging Time |
≥ 12 Hours |
| Charging Current |
Max. 200mA |
| Max Driver Load |
≤ 100W or ≤ 4A |
| Housing Material |
Fire-retardant Plastic |
| Driver Size (L x W x H) |
98.5 x 41 x 22 mm |
| Battery Size (L x W x H) |
95 x 18 x 20 mm |
| IP Rating |
IP20 |
| Operating Temperature |
0°C to +50°C |
| Certifications |
CE, RoHS |
